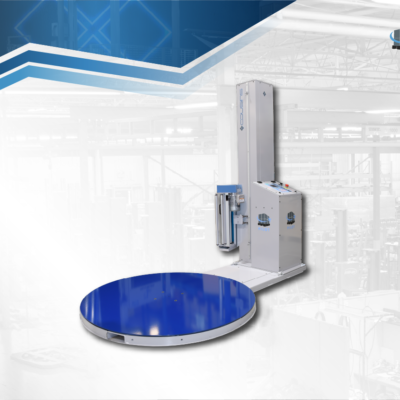

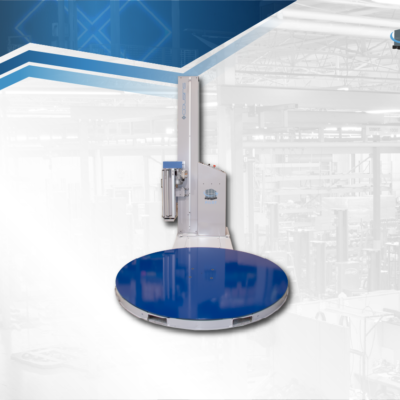

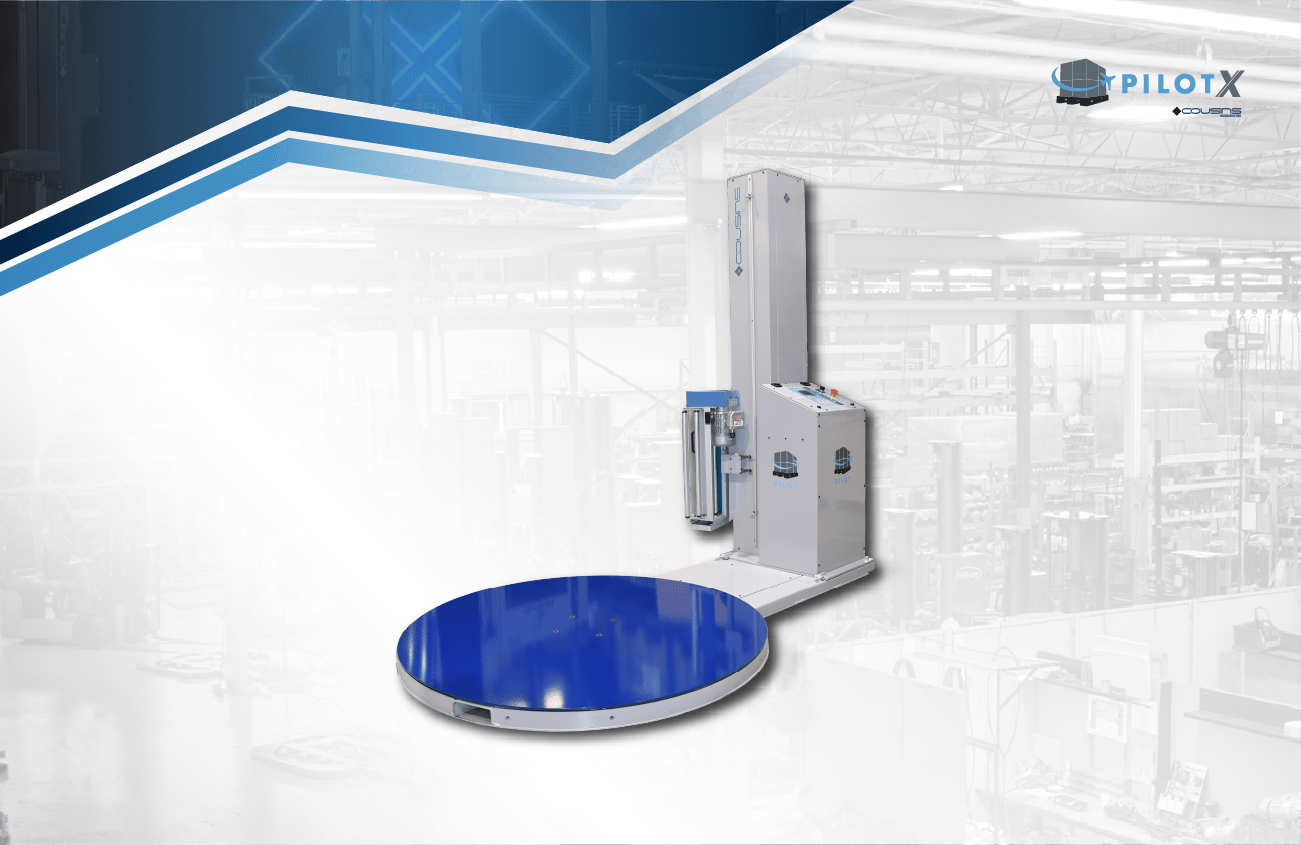

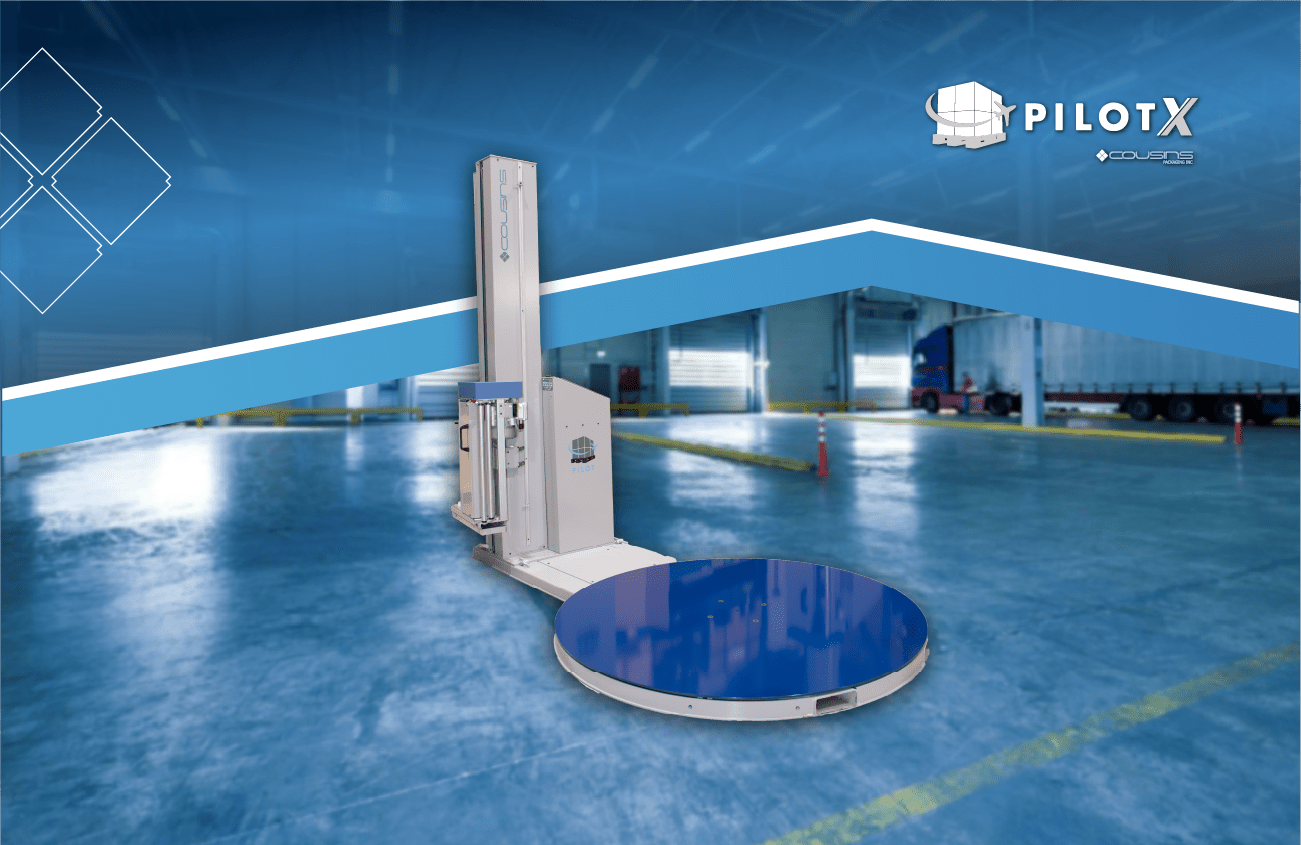

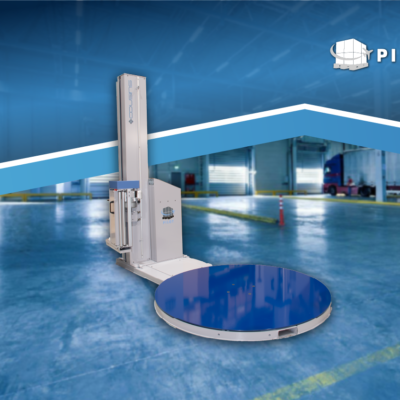

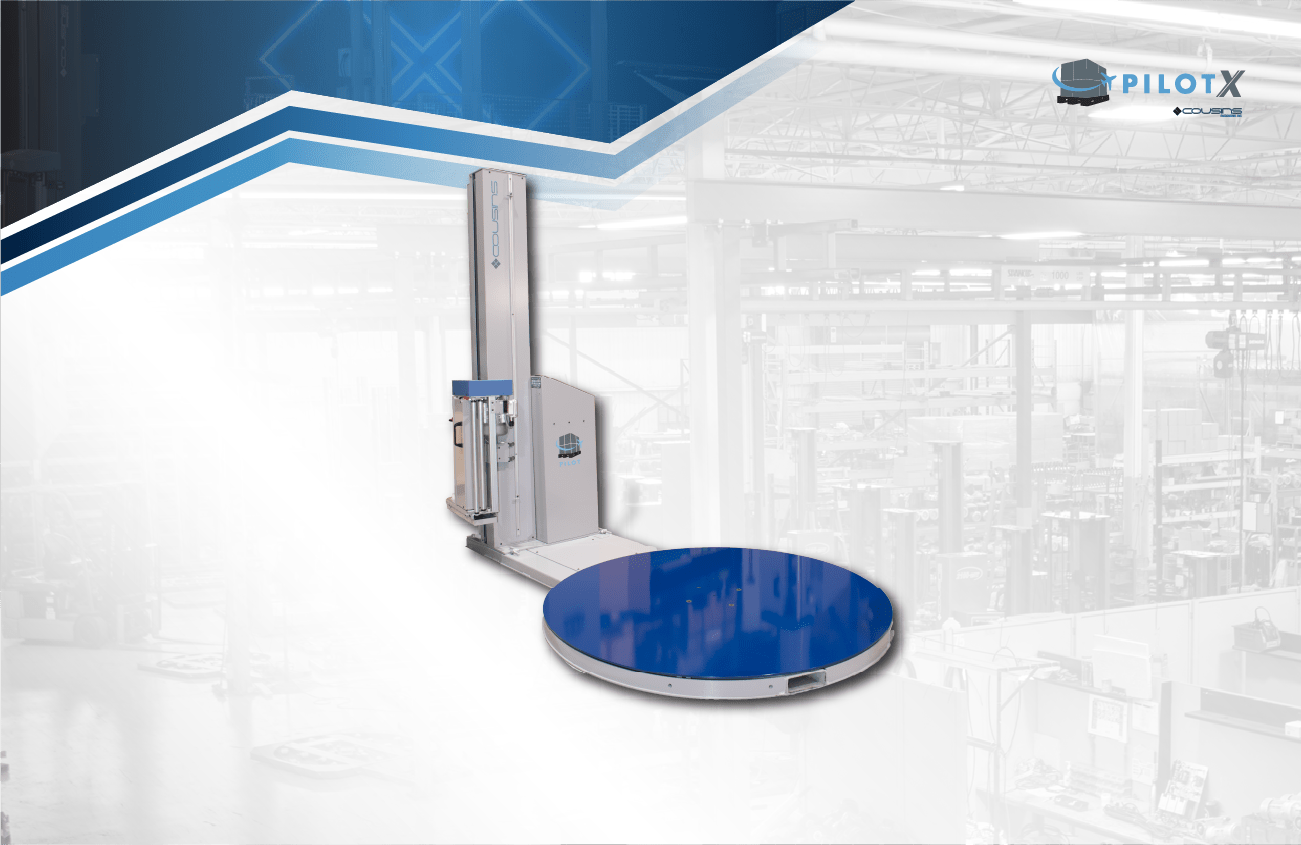

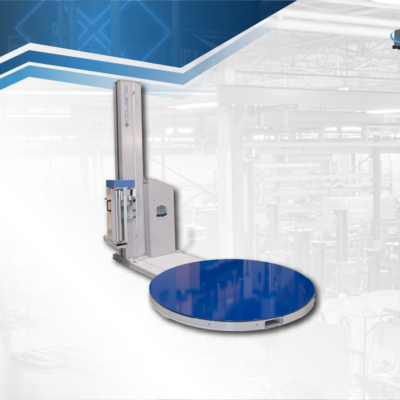

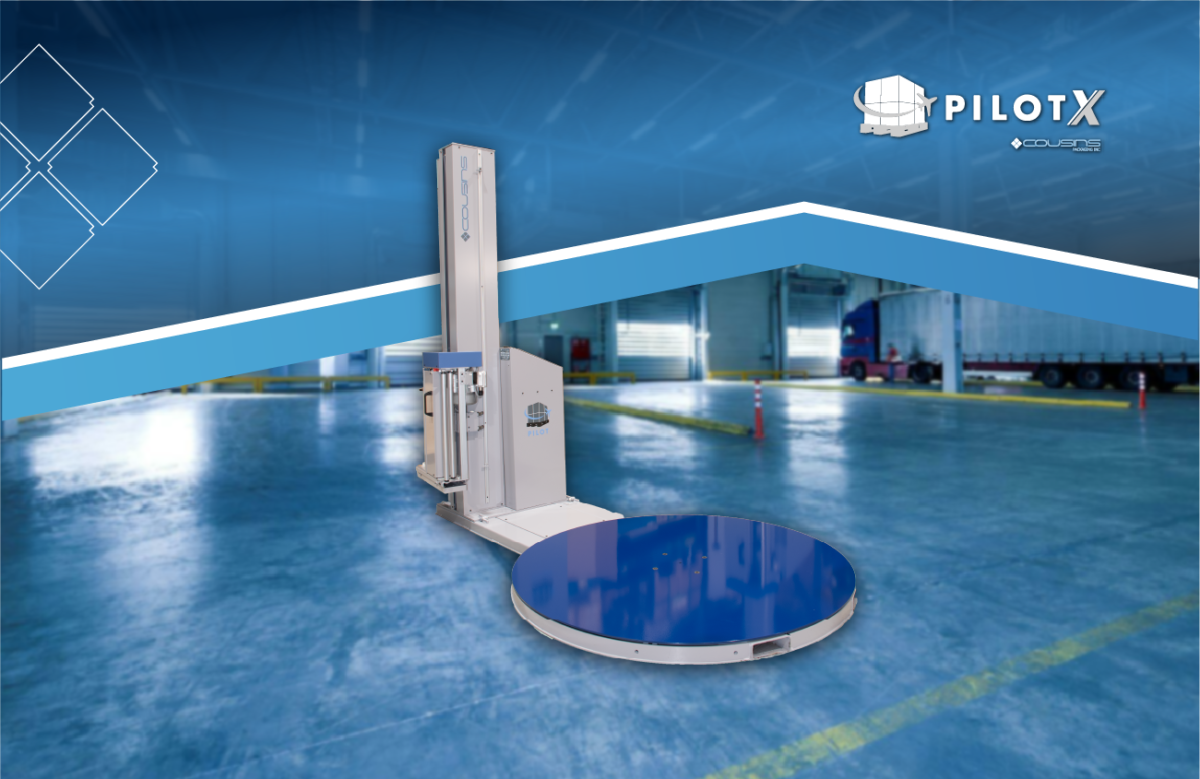

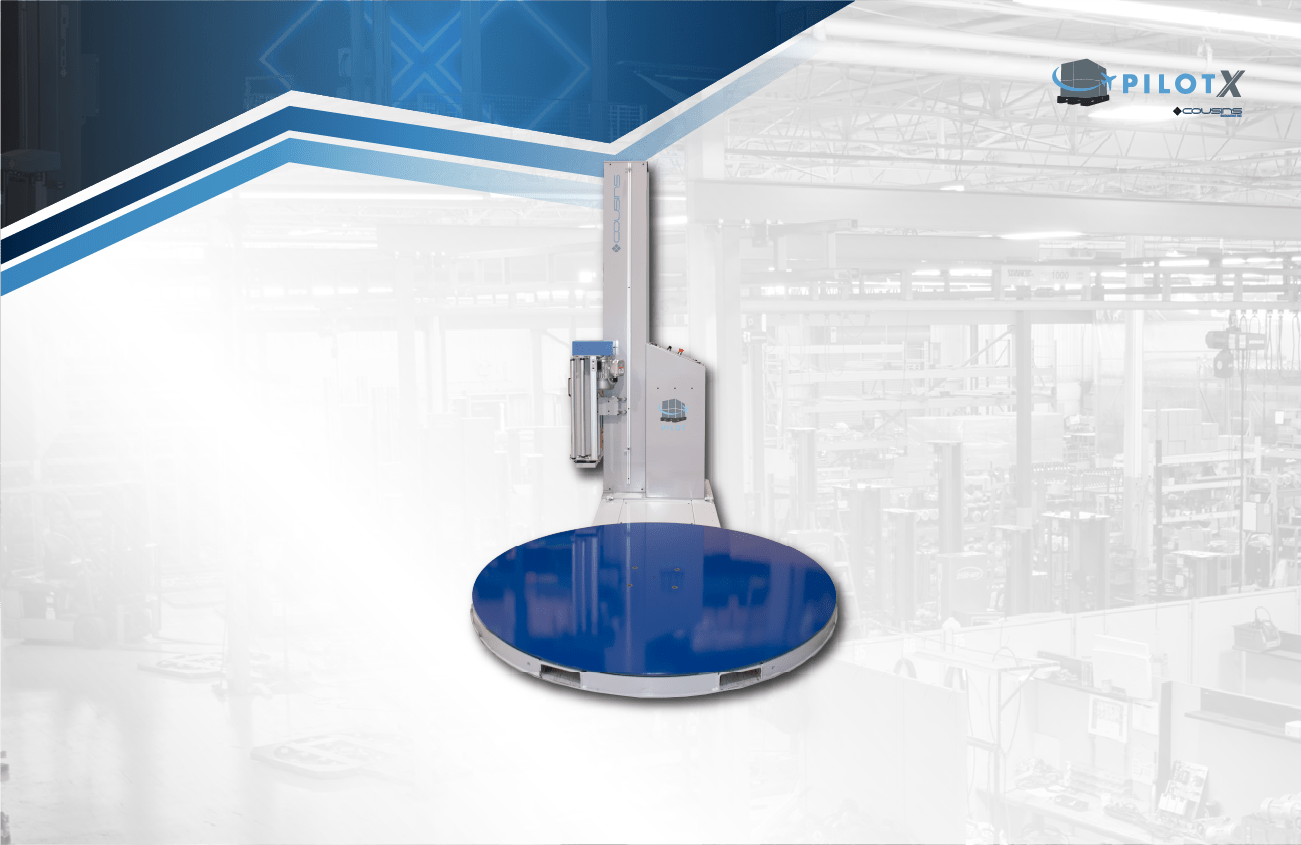

The Cousins Pilot stretch wrapping system combines proven performance with a refined platform-based design. Featuring a redesigned alloy mast and carriage, the Pilot offers improved strength, simplified installation, and reduced material usage—delivering a reliable and cost-effective solution without compromising durability or performance.

SKU: 1001-1 Category:
Share your love

The Cousins Pilot stretch wrapping system is part of our next generation of stretch wrap equipment developed under our platform-based design strategy. Positioned as one of our most accessible solutions, the Pilot delivers proven performance and reliability while incorporating key design enhancements found across our newer systems.

Built from our most popular wrapper platform, the updated Pilot features a redesigned alloy mast and carriage that offer increased strength, improved efficiency, and simplified shipping and assembly. The streamlined design reduces material usage and system complexity while maintaining the durability and performance expected from Cousins Packaging. These improvements also support a lower environmental impact through the use of more sustainable materials.

Wrapping Technology

Turntable
Automation Level

Semi-Automatic
Machine Deployment

Floor Placed
Throughput

Up to 20 loads/hr
Turntable Speed

3–12 RPM
Max Load Weight (Dynamic)

4,000 lbs
Max Load Weight (Static)

12,000 lbs
Max Load Size (W × L × H)

50″ × 50″ × 80″
Conveyor Integration

None
Film Delivery System

Powered pre-stretch
Pre-Stretch Capability

Up to 200%
Photo-Eye / Sensors

None
PLC / Controls

None
Pneumatics Required

No
Electrical Requirement

115V / 1-Ph / 15A
Ideal Use Case

Entry-level powered pre-stretch

PRODUCTION SPEED:

  • 20 loads per hour throughout
    • NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:

  • Maximum load weight:
    • 4,000 lbs dynamic – 12,000 lbs static
  • Maximum load size to safely clear the tower:
    • 50” x 50” (71” diagonal) x 80” H plus up to 4” top film overlap

TURNTABLE:

  • 57” Diameter laser-cut steel plate with surround deck protection
  • Maintenance free – roller bearing support
  • Turntable height 2.75” from floor
  • ANSI # 50 direct chain drive c/w chain tensioner
  • Between 3 and 12 RPM rotational speed c/w soft start acceleration
  • 1/2 HP AC variable speed motor
  • Final revolution deceleration and positive stop alignment.
  • Front and back forklift ports for easy movement
  • Accu-Count exact turntable positioning system for additional film savings!
  • Optional loading ramp for pallet jack use available

FILM CARRIAGE ELEVATOR:

  • 1/2 HP AC variable speed motor
  • ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device

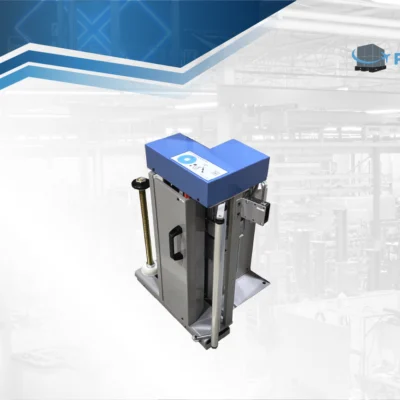

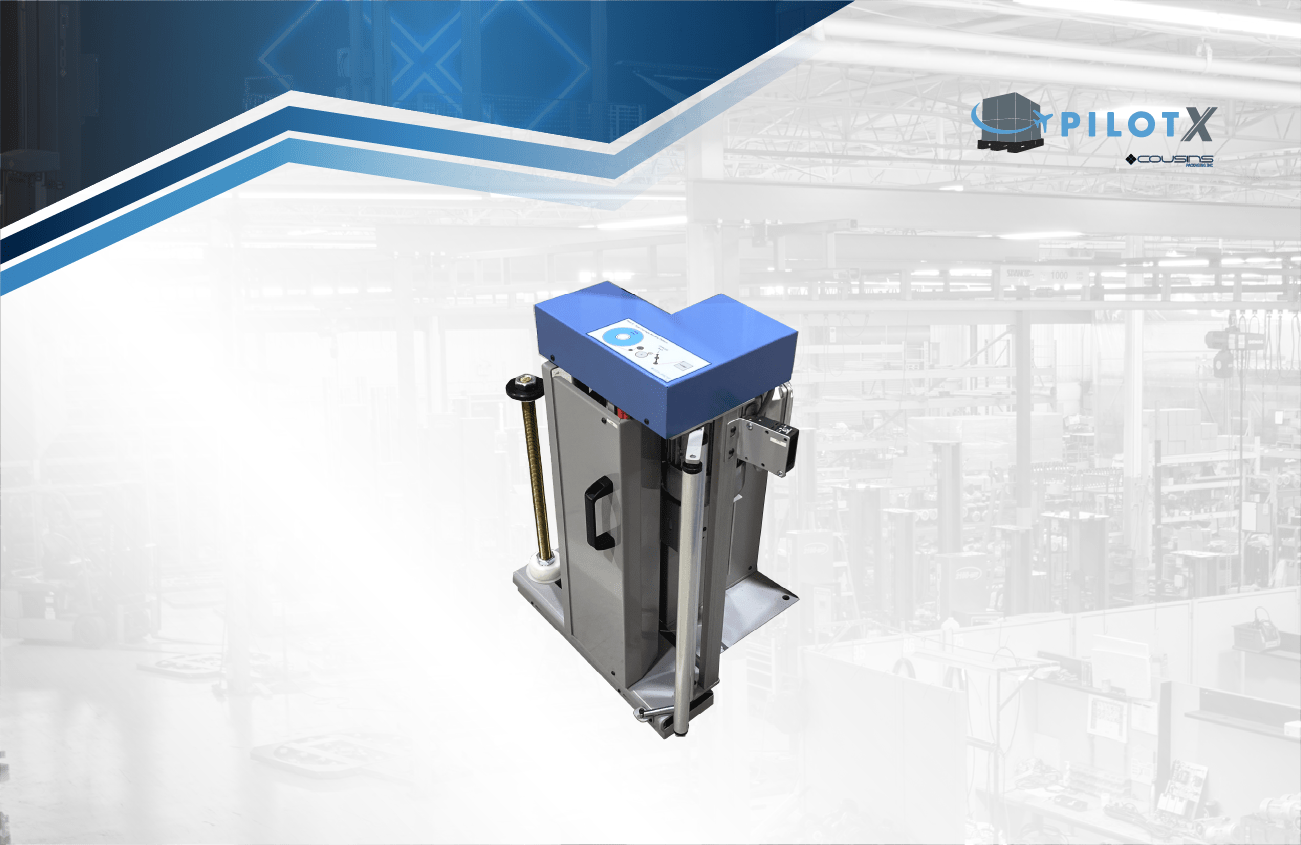

FILM DELIVERY SYSTEM:

  • 20” capacity pre-stretch film carriage
  • Safety door for easy film threading
  • Safety shut-off when machine is at rest
  • 1/2 HP AC variable speed motor
  • Fully electronic dynamic dancer corner compensation
  • 200% fixed stretch capability
  • Pre-stretch ratio variable using easy sprocket change
  • Carriage Descent Obstruction Safety Shut-Off Device
  • Side mounted film carriage for operator convenience and safety

ELECTRICAL INPUT:

  • 115 Volts 1 Phase 60 Hz 15 Amps
