A rugged 4 post frame design recommended for large products and if additional wrapping speed is required.

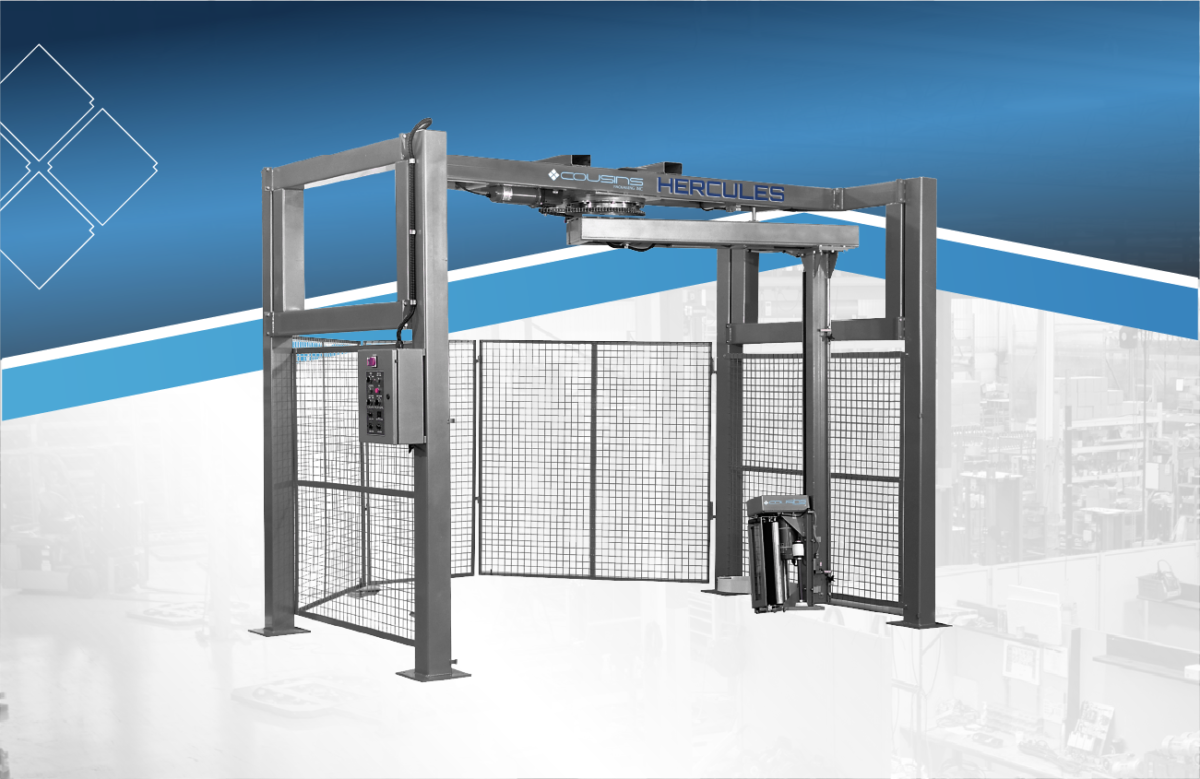

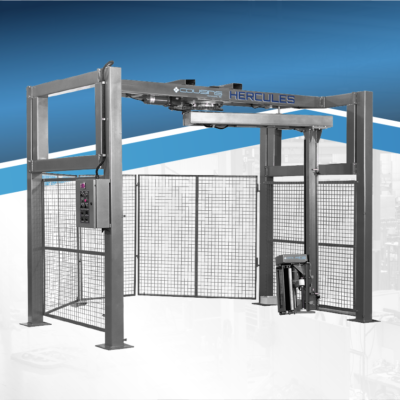

4100H-FS Hercules FS Pallet Wrapper
4100H-FS Hercules FS Pallet Wrapper
$0.00
A rugged 4 post frame design recommended for large products and if additional wrapping speed is required.
| Wrapping Technology | Rotary Arm |
|---|---|
| Automation Level | Automatic |
| Machine Deployment | Free-standing, heavy-duty |
| Throughput | Up to 40 loads/hr |
| Rotary Arm Speed | 1–12 RPM, 3–15 RPM |
| Max Load Weight (Dynamic) | Unlimited (floor supported) |
| Max Load Weight (Static) | Unlimited (floor supported) |
| Max Load Size (W × L × H) | 56″ W x 56″ L (79″ max. load diagonal) x 80″ H (plus up to 4″ top overlap) |
| Conveyor Integration | None |
| Film Delivery System | Powered pre-stretch |
| Pre-Stretch Capability | 33%–313% |
| Photo-Eye / Sensors | None |
| PLC / Controls | Standard Automatic |
| Pneumatics Required | Yes (opt. all-electric) |
| Electrical Requirement | 115V / 1-Ph / 15A |
| Ideal Use Case | Heavy-duty automatic rotary arm |
PRODUCTION SPEED:
- 1-40 loads per hour
- NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
LOAD CAPACITY:
- Maximum load weight:
- Unlimited (floor supported)
- Maximum load size:
- 56″ W x 56″ L (79″ max. load diagonal) x 80″ H (plus up to 4″ top overlap)
ROTARY ARM:
- 20″ diameter ring bearing support
- ANSI # 60 direct chain drive c/w chain tensioner
- 3-15 RPM rotational speed c/w soft start acceleration
- Final revolution deceleration and positive stop alignment
- 3/4 HP DC variable speed motor
FILM CARRIAGE ELEVATOR:
- 1/2 HP AC variable speed motor
- ANSI # 40 direct chain drive c/w shock dampener
- Maintenance free 12 point carriage guidance system
FILM DELIVERY SYSTEM:
- NEW Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
- Special Film Threading Device
- Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
- 1/2 HP AC variable speed motor
- Fully electronic dynamic dancer corner compensation
- 33% to 313% fixed stretch capability
- Pre-stretch ratio variable using easy sprocket change
- Rapid Thread ™ Safety Door with auto power cut-off switch
- Superior film-to-roller contact area
- Lifetime warranty on pre-stretch rollers
ELECTRICAL INPUT:
- 115 Volts 1 Phase 60 Hz 20 Amps
