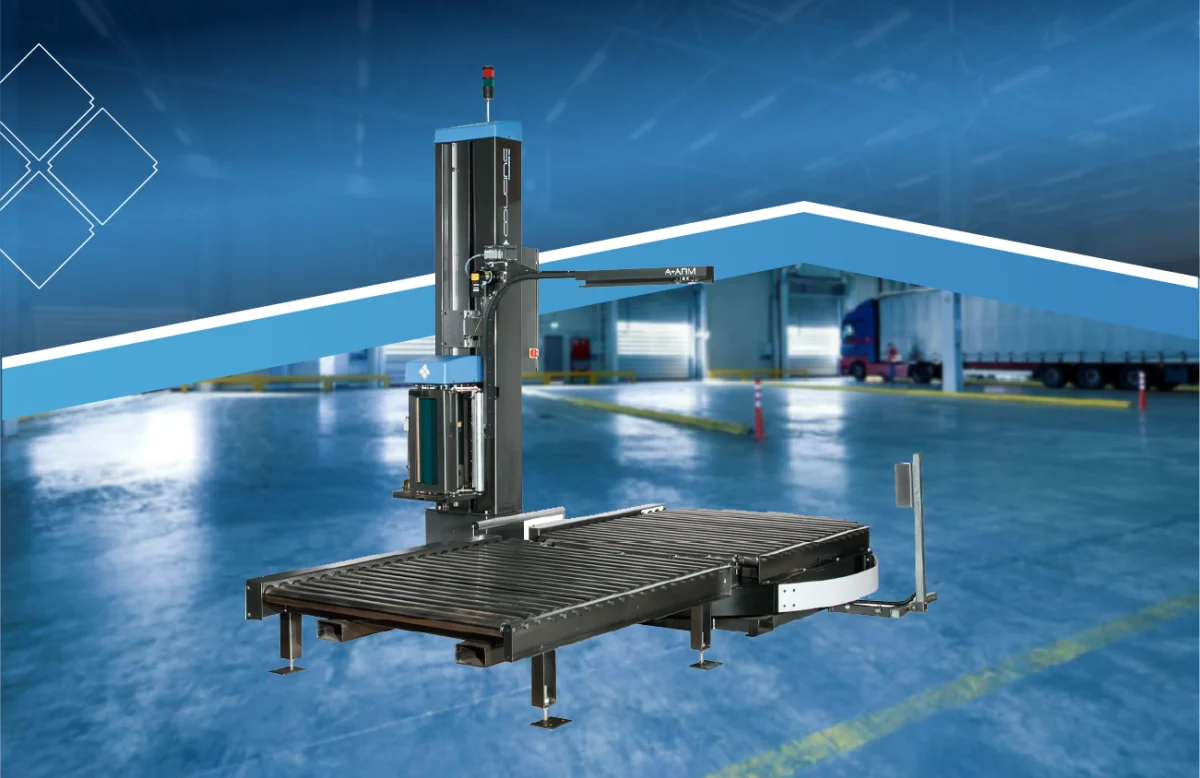

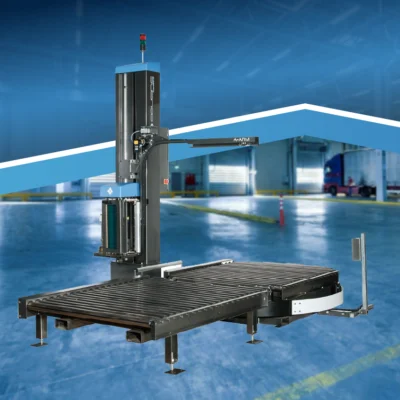

3300-A Conveyorized A-Arm Automatic Pallet Wrapper

$0.00

A fully automatic conveyorized system. The customer can choose a simple, affordable basic system that can accommodate two pallets or add the necessary conveyors to expand the system to satisfy the production requirements.

SKU: 1001-1-2 Category:
Share your love

A fully automatic conveyorized system. The customer can choose a simple, affordable basic system that can accommodate two pallets or add the necessary conveyors to expand the system to satisfy the production requirements.

NOTE: The 3300-A Conveyorized A-Arm Automatic Pallet Wrapper is designed to be installed with existing product flow and conveyor layout design. Whether In-line or off-line, the automation package is designed to be in-line with conveyors using interface relays/logic or as an off-line standalone system using a wireless cycle start remote.

Wrapping Technology

Turntable
Automation Level

Automatic
Machine Deployment

Floor Placed
Throughput

Up to 35 loads/hr
Turntable Speed

3–16 RPM
Max Load Weight (Dynamic)

4,000 lbs
Max Load Weight (Static)

12,000 lbs
Max Load Size (W × L × H)

48″ × 48″ × 75″
Conveyor Integration

Conveyorized
Film Delivery System

Powered pre-stretch
Pre-Stretch Capability

33%–313%
Photo-Eye / Sensors

Optional
PLC / Controls

PLC-Based
Pneumatics Required

No
Electrical Requirement

115V / 1-Ph / 15A
Ideal Use Case

Conveyorized A-arm lines

PRODUCTION SPEED:

  • 1-35 loads per hour
    • NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:

  • Maximum load weight:
    • 4,000 lbs dynamic – 12,000 lbs static
  • Maximum load size:
    • 48″ W x 48″ L (68″ max. load diagonal) x 70″ H (plus up to 2″ top overlap)
  • Minimum load size:
    • 40” W x 40” L x 24” H (57” diagonal) – smaller loads require a factory quote

TURNTABLE:

  • 72″ diameter 3/8″ thick laser-cut steel plate with 5″ skirt.
  • Front and side cut-outs with UHMW flexible contouring for fork truck access.
  • 6-point heavy duty ball bearing caster support system.
  • ANSI # 60 direct chain drive c/w chain tensioner.
  • 3-16 RPM rotational speed c/w soft start acceleration.
  • 3/4 HP AC variable speed motor c/w turntable holding brake.
  • Final revolution deceleration and positive stop alignment.

FILM CARRIAGE ELEVATOR:

  • 1/2 HP AC variable speed motor
  • ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device
  • Maintenance free carriage guidance system

FILM DELIVERY SYSTEM:

  • Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
  • Special Film Threading Device
    • Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
  • 1/2 HP AC variable speed motor
  • Fully electronic dynamic dancer corner compensation
  • 33% to 313% fixed stretch capability
  • Pre-stretch ratio variable using easy sprocket change
  • Carriage Descent Obstruction Safety Shut-Off Device
  • Rapid Thread ™ Safety Door with auto power cut-off switch
  • Side mounted film carriage for operator convenience and safety
  • Superior film-to-roller contact area
  • Lifetime warranty on pre-stretch rollers

POWER ROLLER CONVEYOR:

  • Basic system includes:
    • 72″ dial. powered Process/Turntable section. Infeed and outfeed conveyors are optional.
  • Turntable section includes:
    • 4,000 lbs dynamic – 12,000 lbs static
    • Chain driven live roller conveyor rated 4,000 lbs per section
    • 2-1/2″ diameter 11 gauge rollers c/w 11/16″ hex axles on 3″ centers
    • ANSI # 40 roller to roller chain drive
    • 50″ effective roller width
    • Conveyor speed variable up to 30 FPM with electronic soft start
    • Pass-line height – 16-1/2″ from floor to top of rollers
    • 1/2 HP AC variable speed motor

ELECTRICAL INPUT:

  • 115 Volts 1 Phase 60 Hz 20 Amps
