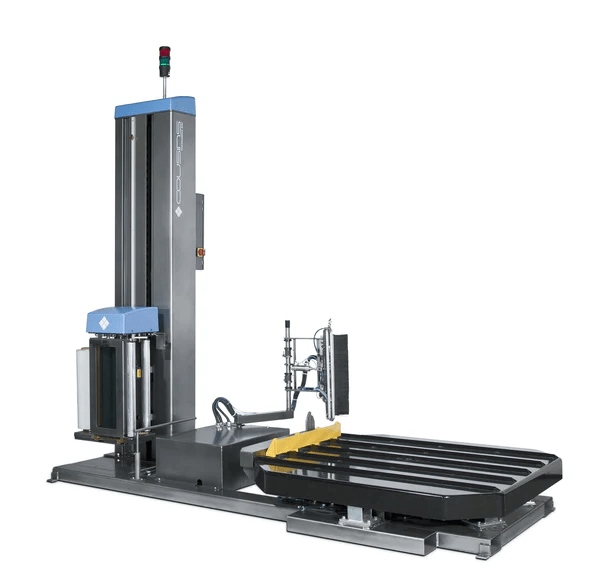

3200 Automatic Pallet Wrapper (High Profile)

A unique and fully automatic stretch wrapper that can be operated from the forklift with a wireless remote. Eliminates the need for the operator getting off and on the lift to attach and cut the film. Provides a huge labor cost savings while eliminating safety concerns.

The High-Profile 3200 Platform Automatic Pallet Wrapper is built in North America with Brand Name Components. The 3200 has Features & Benefits that Surpass the Competition.

Brochure

PRODUCTION SPEED:

• 1-40 loads per hour
  • NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:

• Maximum load weight:
  • 4,500 lbs dynamic – 10,000 lbs static
• Maximum load size:
  • 50″ W x 50″ L (71″ max. load diagonal) x 80″ H
• Minimum load size:
  • 30″ W x 30″ L x 24″ H

TURNTABLE:

• 52″ octagonal 5/16″ thick formed steel plate turntable
• 4 point caster support system
• Turntable height less than 12″ from floor
• ANSI # 50 direct chain drive c/w chain tensioner
• 3-12 RPM rotational speed c/w soft start acceleration
• 1/2 HP AC variable speed motor
• Final revolution deceleration and positive stop alignment
• Front and back forklift ports for easy movement

FILM CARRIAGE ELEVATOR:

• 1/2 HP AC variable speed motor
• ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device
• Maintenance free carriage guidance system

FILM DELIVERY SYSTEM:

• Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
• Special Film Threading Device
  • Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
• Loadloc™ carriage with patented tension roller
• 1/2 HP AC variable speed motor
• Fully electronic dynamic dancer corner compensation
• 33% to 313% fixed stretch capability
• Pre-stretch ratio variable using easy sprocket change
• Carriage Descent Obstruction Safety Shut-Off Device
• Rapid Thread ™ Safety Door with auto power cut-off switch
• Side mounted film carriage for operator convenience and safety
• Superior film-to-roller contact area
• Lifetime warranty on pre-stretch rollers

ELECTRICAL INPUT:

• 115 Volts 1 Phase 60 Hz 15 Amps

MISCELLANEOUS OPTIONS:

• Starter Spare Parts Kit – recommended minimum quantity of parts to stock for this specific machine
• Additional transmitter for the wireless remote start/stop control (one included with the machine)
• Tower extension for 110” wrap height capability (standard is 80”)
  • NOTE: All machines with tower extensions will be hinged and shipped knocked-down
• Dusty Package – Complete sealing of the control panel and use of sealing rings on any conduit entries into the control panel
• Cold Weather Package – down to 32°F
• Broken film/out of film detection c/w automatic machine reset and fault indication
• Lanyard pull switch – mounts to ceiling (in place of standard wireless remote)
• Beacon light with red & green lens – indicates run, clear or fault conditions

LOAD CELL & SCALE PACKAGES:

• Platform Scale Package – SureWeigh Platform Scale with GSE250 Digital Weight Indicator
  • NOTE: Machine with base extension option requires a factory quote
• Built-in Load Cells Scale Package – with GSE250 Digital Weight Indicator
  • NOTE: Machine with base extension option requires a factory quote
• Upgrade digital weight indicator from GSE250 model to Matrix 365. The standard model GSE250 indicator is for load weight only and communication features are not available. Matrix 365 indicators have programming features for printers and communication capability.

AIR FLOW & PALLET LOCK:

• Pallet Lock Roping Device – the most effective method of securing the load to the pallet. Easily programmed using the touchscreen to apply the roped or normal full web film for additional holding force where needed, air flow if required and to prevent film breakage on sharp product or pallet corners. AIR REQUIRED – Includes a filter-regulator unit and quiet air compressor.
• Delete the filter-regulator unit and quiet air compressor included in option OPLRD if customer supplies the necessary pneumatic requirement.
  • Automatic Slitting and or Roping Device – A wide variety of automatic film slitting and or roping devices are available upon request.

AUTOMATION:

• “All-Electric – No Pneumatics Required”
• Electro-mechanically actuated film clamp mechanism
• Electro-mechanically actuated film tail cut/wipe arm mechanism
• Ni-chrome impulse hot wire film cut off c/w automatic periodic cleaning cycle

CONTROL:

• PANASONIC PLC with Touchscreen Operator Interface
• Power Off – On – Reset switch & Power On indicator light
• Single-button Auto Wrap Cycle Start/Pause
• Cycle Pause for applying top sheets
• Reinforce Wrap control for mid-wrapping
• Emergency Stop button
• Turntable Jog button
• Film Carriage Lower & Raise buttons
• Film Clamp Open/Close button
• Film tension (Force-to-Load) control
• Separate film carriage raise & lower speed controls
• Variable turntable speed control
• Triple beam auto load height sensing photo-eye, detects dark or shiny loads
• Separate 1 to 12 revolution top & bottom wrap control
• Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load
• A – B – C wrap program selector with capability to input and store unique wrapping parameters for each program
• Wireless remote start/stop control
  • Optional lanyard, pendant or pedestal control station available
• NEMA 12 control panel enclosure
• Non-proprietary UL/CSA approved components

STRUCTURAL:

• All structural steel construction
• Forklift truck portable base structure design
  • lifting tubes included for front and rear access
• Structural steel tube machine tower with sheet metal covers
• Electro-static powder coated paint finish
